INFRASTRUCTURE
NEXT-GENERATION
CASTING TECHNOLOGY
ADVANCED DIE CASTING INFRASTRUCTURE
At Supreme Castech, our infrastructure is built around next-generation die casting technology designed to deliver precision, efficiency and reliability at scale. We operate with the latest-generation die casting machines, integrated with advanced automation and process controls that enable faster production cycles, tight dimensional accuracy and consistent high-quality castings across every batch.
Our state-of-the-art setup ensures optimal metal flow, reduced porosity, excellent surface finish and repeatable results, making us a trusted partner for high-performance die cast components.
COLD CHAMBER
DIE CASTING MACHINES
Our modern manufacturing facility is equipped with a complete range of advanced die casting machines, allowing us to handle diverse component sizes, geometries and alloy requirements with ease. Every machine is supported by real-time monitoring systems, precision tooling and strict quality controls to ensure flawless output from prototyping to mass production.
KEY ADVANTAGES:
- High-pressure injection for dense, defect-free castings
- Excellent strength-to-weight ratio
- Ideal for automotive, industrial, and engineering applications
- Consistent quality for medium to high-volume production
POSSIBLE MOULD SIZES THAT CAN BE SUITED FOR
PRODUCTION ARE GIVEN IN THE TABLE BELOW
| S.No | Machine Tonnage | Machine Type | Maximum Mould Size (in mm) |
|---|---|---|---|

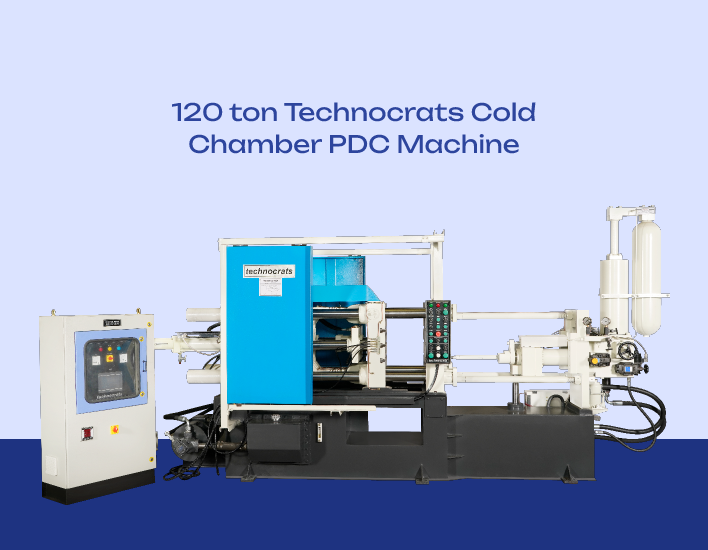

| 1 | 120 T Technocrats | Cold Chamber | 425 x 425 |

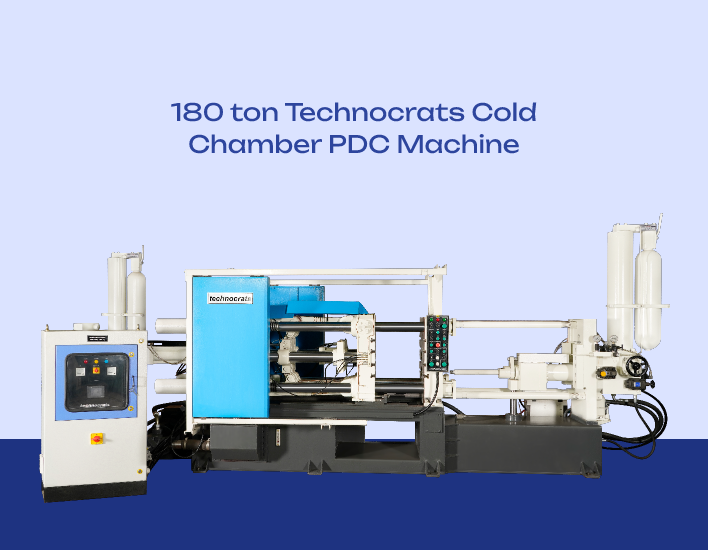

| 2 | 180 T Technocrats | Cold Chamber | 475 × 475 |
HOT CHAMBER
DIE CASTING MACHINES
Our hot chamber die casting machines are optimized for zinc die casting, offering unmatched speed, precision, and surface finish. With shorter cycle times and exceptional repeatability, these machines are perfect for producing intricate, thin-walled, and high-precision components.
KEY ADVANTAGES:
- Faster production cycles and higher efficiency
- Superior surface finish and fine detailing
- Excellent dimensional accuracy
- Cost-effective for high-volume manufacturing
POSSIBLE MOULD SIZES THAT CAN BE SUITED FOR PRODUCTION ARE GIVEN IN THE TABLE BELOW
| S.No | Machine Tonnage | Machine Type | Maximum Mould Size (in mm) |
|---|---|---|---|

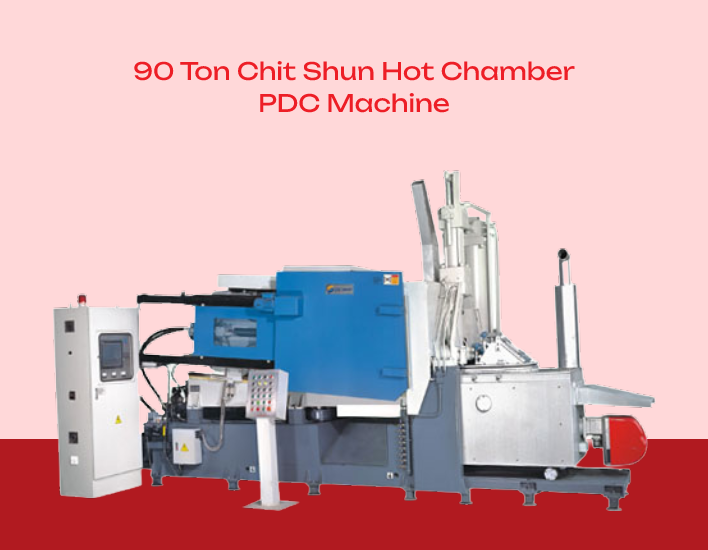

| 1 | 90 T Chit Shun | Hot Chamber | 350 x 350 |

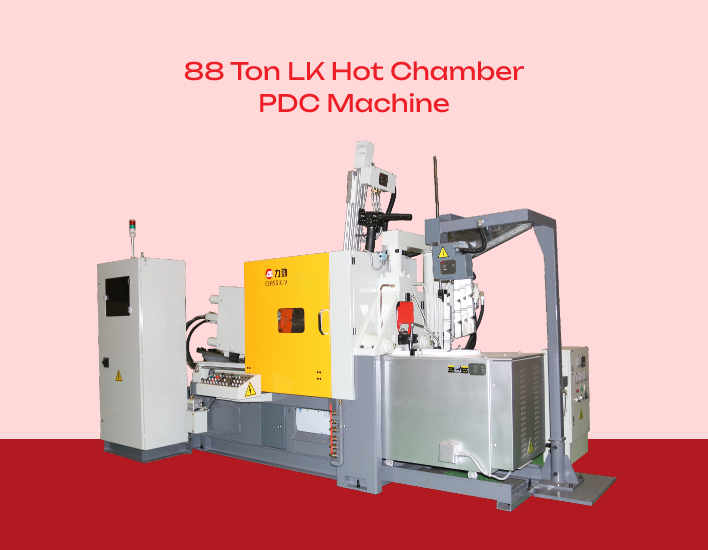

| 2 | 88 T LK | Hot Chamber | 375 x 375 |

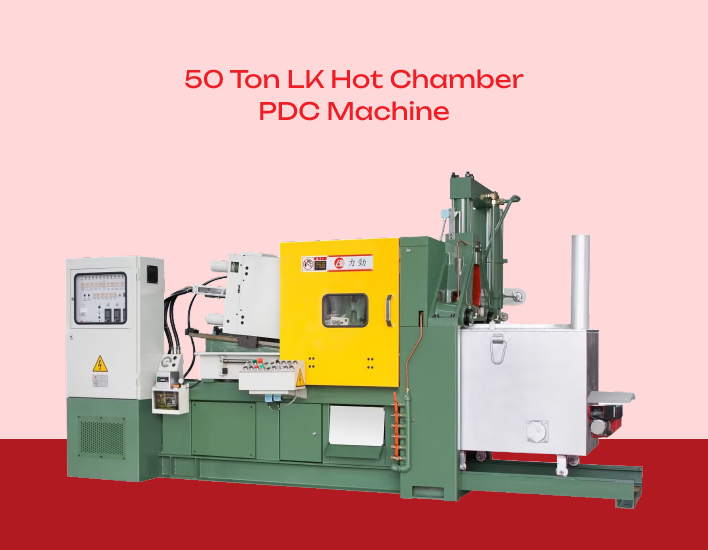

| 3 | 50 T LK | Hot Chamber | 425 x 425 |

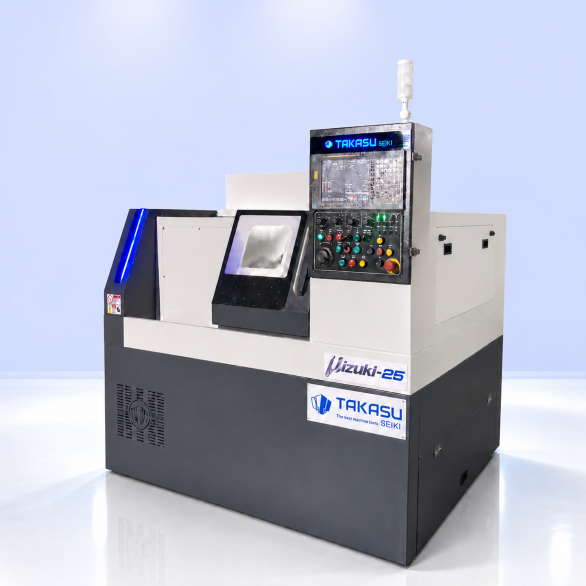

PRECISION CNC TURNING FOR PRODUCTION READY COMPONENTS
At Supreme Castech, our CNC turning capability supports accurate and repeatable secondary machining of die cast components. With high speed spindle performance, fast traverse and flexible tooling configurations, our machining setup helps reduce cycle time, maintain dimensional consistency and deliver components ready for assembly and final application.
COMPACT MACHINING.
CONSISTENT PRECISION.
HIGHER PRODUCTIVITY.

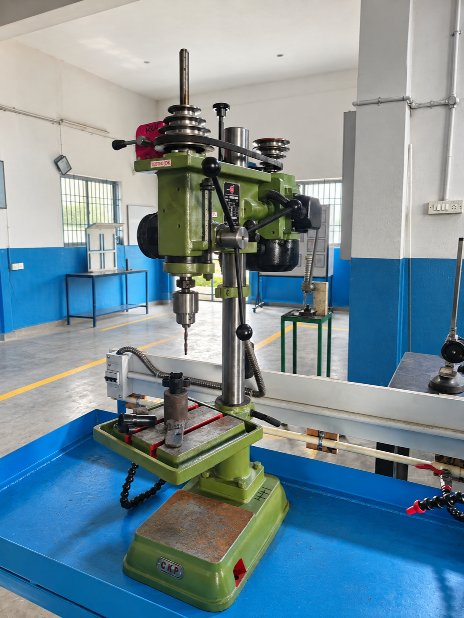

PRECISION DRILLING
Our secondary machining facility includes a heavy duty CKP drilling machine for accurate and repeatable drilling of aluminium and zinc die cast components, supporting production ready parts with consistent dimensional quality.

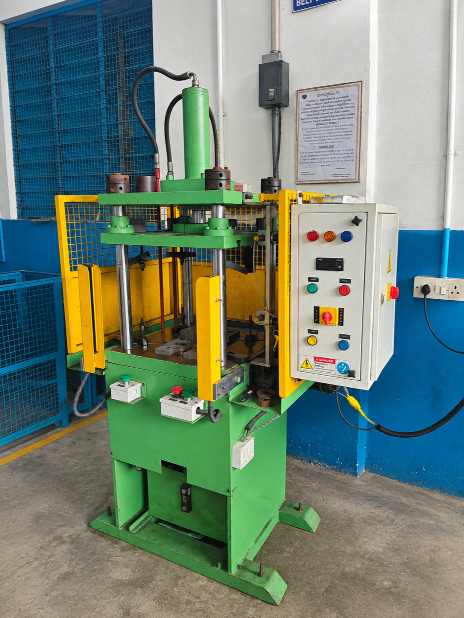

HYDRAULIC TRIMMING PRESS
Our four column hydraulic trimming press enables accurate and repeatable removal of runners, gates and excess material from die cast components, improving productivity and preparing parts efficiently for subsequent machining and finishing operations.

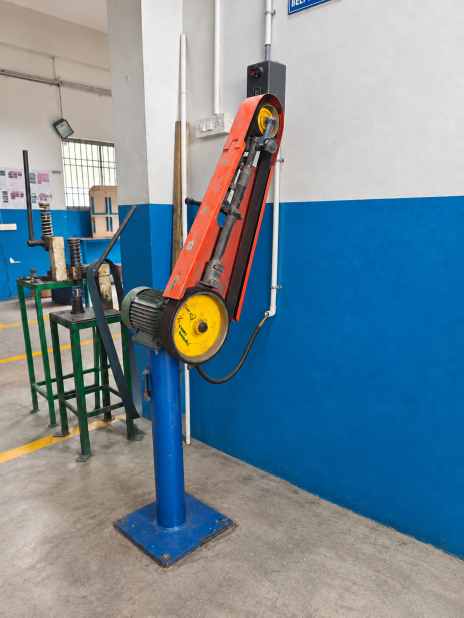

ABRASIVE BELT
GRINDING
Our four column hydraulic trimming press enables accurate and repeatable removal of runners, gates and excess material from die cast components, improving productivity and preparing parts efficiently for subsequent machining and finishing operations.

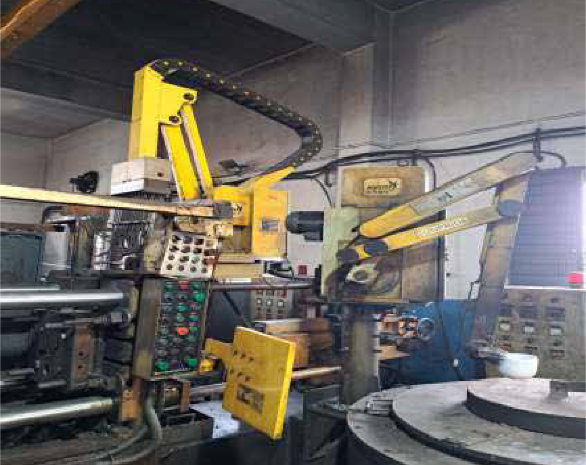

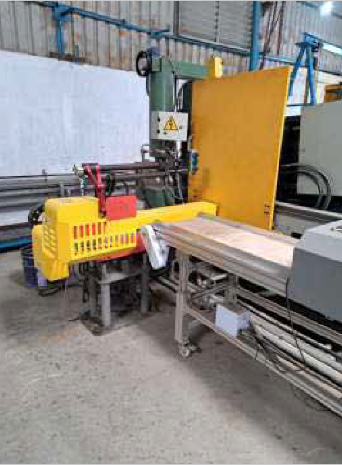

SPECIAL FEATURES & AUTOMATION UPGRADES

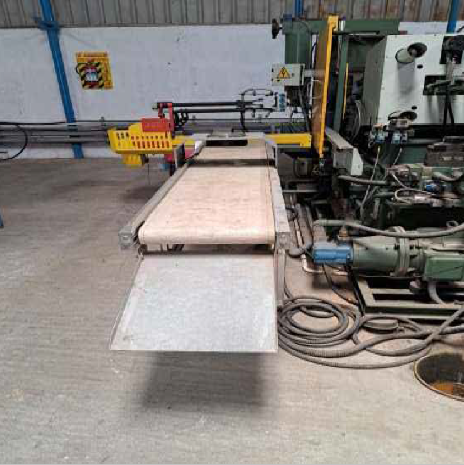

Our die casting machines are equipped with advanced Ningbo Sunpride automation systems, including auto ladles, auto sprayers, auto extractors and casting collection conveyors. These smart upgrades enhance process consistency, operator safety, cycle time efficiency and overall casting quality, ensuring smooth, reliable and high-output production.
